UMB250

UMB250

It is suitable for the packing of products such as biscuits, bread, baked and fried donut products, moon-cake, French roll, chocolate, instant noodles, Chinese noodles, soap, card, scouring pad, comb, plaster, bundles of pencil and ice-cream bar, daily-commodity, hardware etc many assortments with regular shape.

Product Details

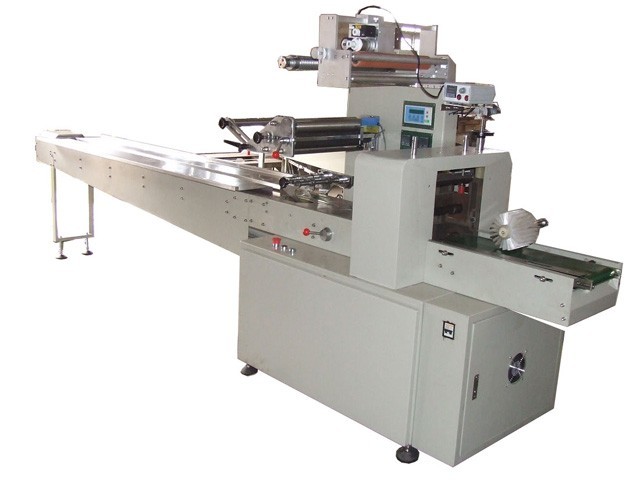

This machine adopts PLC intellectualized Micro-computer User-Interface Control Center, hence steady in performance with lower fault rate and easy to operate. Also the full set of steady electrical system can keep the machine with long time of working state.

Features:

1. Human-machine interface in Chinese (English), making the setting and save easy and quick.

2. Main motor equipped with high quality AC frequency converter which makes step-less speed changing.

3. High accuracy photoelectric detection tracing system with automatic compensation in both directions for reliable accuracy.

4. Non-stage transmission used for the adjustment of bag length, which makes machine much more durable, stable and precise.

5. The conveying chain can be adjusted without stopping the machine, thus convenient and sensitive.

6. Adjustable style='width: 80%'and sealing structure makes the sealing effect perfect and strong enough.

7.The conveying part of machine where touch the products is made of high quality stainless steel.

8. This machine can be equipped with nitrogen filling device and date printer, the printing position can be adjusted freely on bag.

9. All the machine's shell can all coved by prime-quality 304# stainless steel .

For more information, please send inquiry to me.

Technical Parameters

Model

UMB250

UMB350

UMB450

Max. film width

250mm

350mm

450mm

Max .capacity of packing
(According to the material)

180 bags/min

150 bags/min

120 bags/min

Film thickness

0.03-0.06mm

0.03-0.06mm

0.03-0.06mm

Bag Length

50-200mm

90-350mm

90-350mm

Packing Width

25-100mm

30-150mm

50-180mm

Packing Height

≤35mm

≤50mm

≤90mm

Total power

2.4Kw 220v

2.5Kw 220v

2.7Kw 220v

Overall dimensions
(L * W * H)

4200×600×1400mm

4200×800×1500mm

4200×850×1600mm

Total Weight

650kg

750

800kg
