LM-JS-700-46

LM-JS-700-46

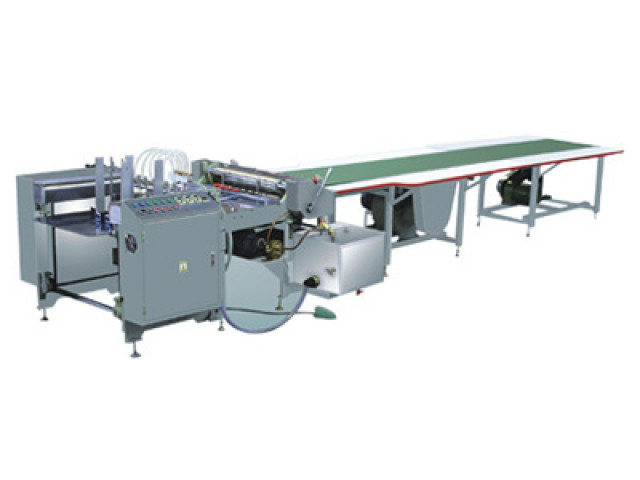

LM-JS-700-4/6 Feida Auto-feeding Gluing Machine is a transferring type of paper upper-side gluing equipment. It is characterized by rational structure, stable performance, convenient operation, easy replacement, and low-labor intensity. It adopts hot-melt adhesive powder to avoid traditional white emulsion from shrinking and mildew. It is an ideal equipment for medium and small sized printing packing plants to make flow line production.

Product Details

LM-JS-700-4/6 Feida Auto-feeding Gluing Machine is a transferring type of paper upper-side gluing equipment. It is characterized by rational structure, stable performance, convenient operation, easy replacement, and low-labor intensity. It adopts hot-melt adhesive powder to avoid traditional white emulsion from shrinking and mildew. It is an ideal equipment for medium and small sized printing packing plants to make flow line production. Adjustable gluing drum to make the glue spread out on the surface of the paper. Suction sending device to transfer the paper stead and not slant. Circular glue groove attached to indirect heating and temperature control system can guarantee the adhesive degree of the glue. Set time to heat that enhance production profits, circular cleaning system makes the machine cleaned within 2 minutes. Frequency speed adjustment, that controls the speed according the worker's skillful degree. The conveyor can be made by 6 meter.



The main specification:

Model:

LM-JS-700-4/6

Max sheet size:

900*600mm

Min sheet size:

100*50mm

Heating power:

3kw

Paper thickness:

80-200 g/m2

Production speed:

40 pcs/min

Power supply:

3HP/380V

Whole weight:

1800kg

Overall dimension (LXWXH):

6050*1650*950mm

Online Inquiry
