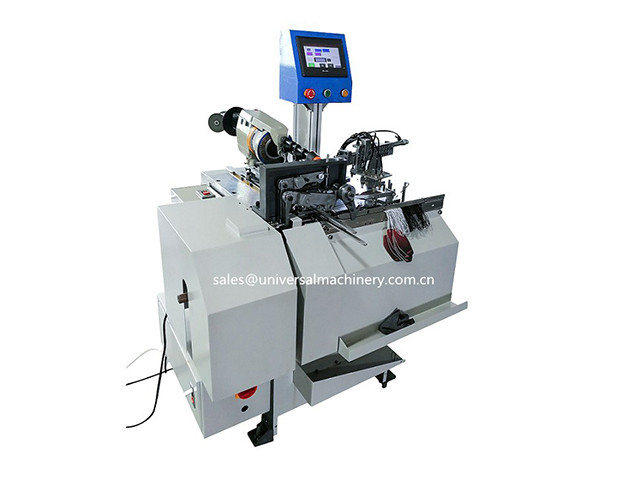

Paper car air freshener knot tying machine (TL-LY8U)

This high speed automatic hang tag threader machine is specifically designed for different shapes of paper car air fresheners. It is cold cutting for elastic cord with universal feeder.

Product Details

Automatic tags feeding ,stringing, knotting and counting at one time. It can completely solve the trouble from manual stringing and manual knot tying.

It can adopts PLC control. It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for producing all different shapes of paper car air fresheners.

Specification:

Model:

TL-LY8U

Speed:

3000 to 4800 pcs/hour

Tag size:

30*35mm to 95*150mmTag

Tag place the height:

230mm

String diameter:

0.3-1.2mm

String length:

80-200mm(after knotting)

Tag hole diameter:

3mm, 4mm, 5mm (can change the mould)

Knot length:

15-18mm

Tag thickness:

150-700g

Machine dimension:

1020*960*1490mm

Machine weight:

450kgs

Voltage:

380V or 220V, 50HZ

Power:

750W



sample show:
