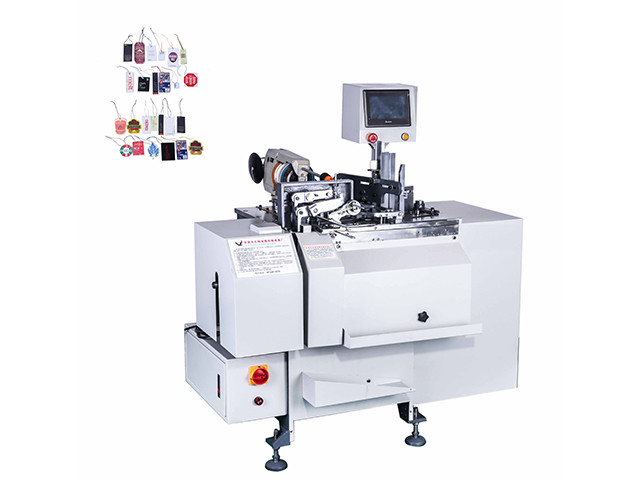

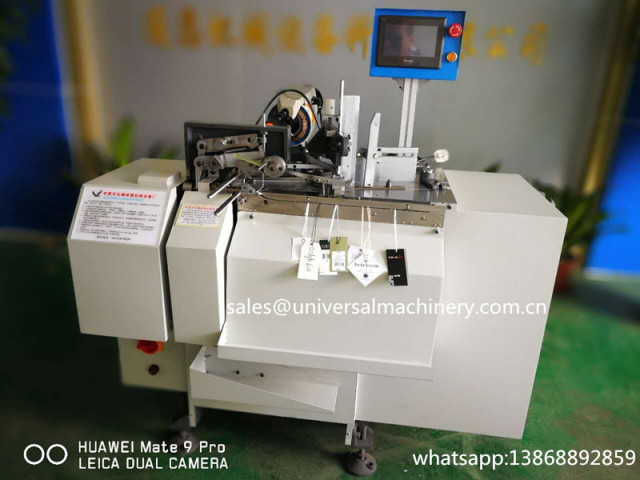

Paper hang tag with pin threading machine (LM-LY3PIN)

Paper hang tag with pin threading machine (LM-LY3PIN)

This high speed automatic hang tag threader machine is specifically designed for threading hang tag with pin together. It is cold cutting for any non elastic cord.
Automatic tag and pin feeding, tag hole punching, stringing, knot tying and counting at one time. It can completely solve the trouble from manual stringing and manual knot tying.
Online Inquiry Contact Us

Product Details

It can adopts PLC control . It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for threading hang tags with pin together.



Technology Parameters:

Model:

LM-LY3PIN

Speed:

60-80pcs/min

Cord thickness:

0.3-2.0mm

Hangtag min. size:

20*35mm

Hangtag max. size:

90*150mm

Cord  min. length:

150mm

Cord max. length:

400mm

The machine dimension:

1200*1300*1500mm

Weight:

460kgs

Power:

220V/380V, 3 phase 4 wire, 50HZ

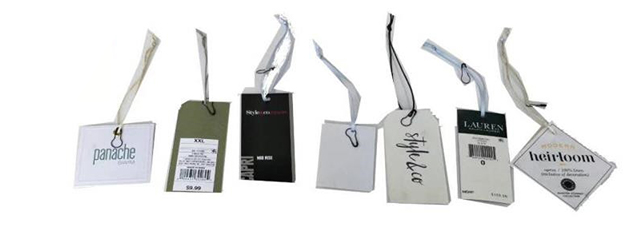

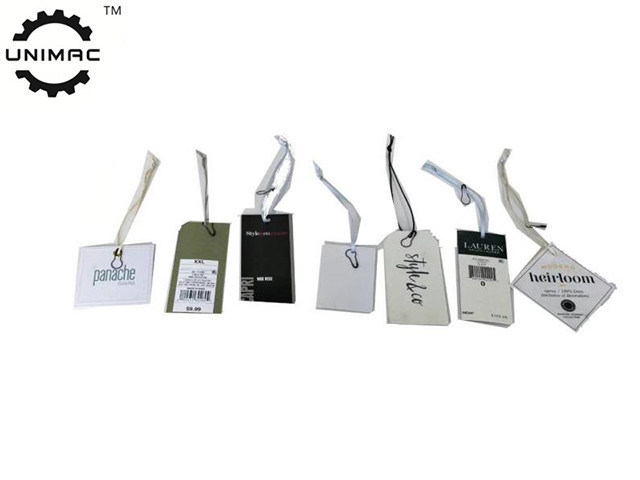

Sample show:
