TYMB750-1100

TYMB750-1100

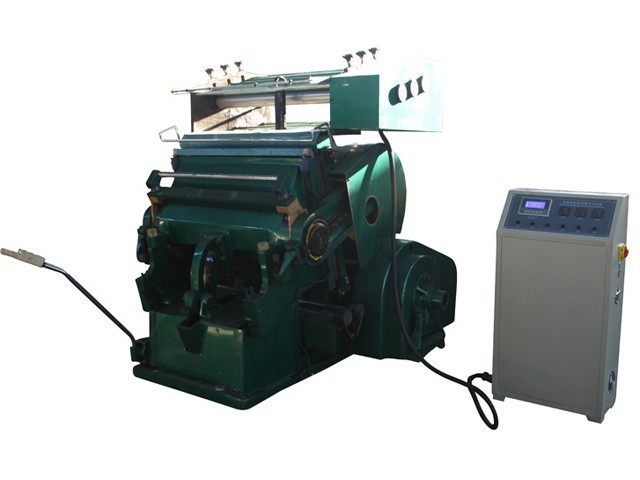

This machine is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc. It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and cutting machine for mould cutting and creasing cardboard cases and boxes. Concave- convex thermo- printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products. The machine is controlled by a chip microprocessor, with the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum. The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained by anybody.
Online Inquiry Contact Us

Product Details

The main Specification:

Model:

  TYMB750

   TYMB930

   TYMB1100

Plan metric effective area:

 720*500mm

 930*670mm

 1100*800mm

Area of large gilding board:

 650*460mm

 920*650mm


 1000*750mm

Area of small gilding board:



 750*460mm

 850*550mm

Total power:

 6.5kw

 13kw

 19kw

Thermoregulation range:

 1-150 degree

  1-150 degree

 1-199 degree

Continuous thermo printing speed:

 25(Storks/min)

22(Storks/min)


 20(Storks/min)

Volume of common foil-feeding:

 1-500mm

 1-600mm


 1-800mm

Leapfrog frequency:

 1-99 times

  1-99 times


 1-99 times

Foil-feeding resolute:

 1mm

 1mm


 1mm

 Overall Dimension:
Motor dates:

 2.2(kw)/6(Series)

 4(kw)/4(Series)


 4(kw)/6(Series)

 Net weight:

 2000kgs

 3500kgs

 5000kgds

 The machine size:

 1300*1500*1800

 1830*1670*2200mm

 2000*1950*2300mm
