LY-YP1000

LY-YP1000

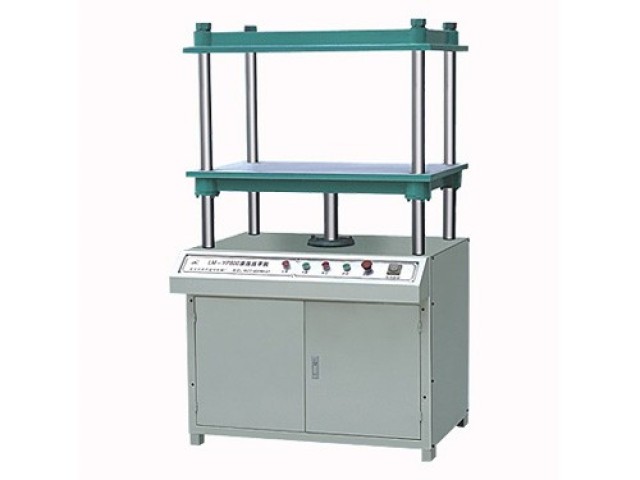

Book core pressing machine LM-YP1000 is mainly used for pressing paper after the paper is glued and combined. This machine is simple in construction, beautiful outlook, stable pressure and easy operation. It is a good equipment for the printing.

Product Details

The main specifications:

Model:

LM-YP800

LM-YP1000

LM-YP1200

Pressure:

12.5T

25T

30T

Work Route:

600mm

700mm

800mm

Flatting Area:

16Mpa

21Mpa

31.5Mpa

Work Speed:

80mm/min

80mm/min

80mm/min

Worktable Area

650*800mm

800*1000mm

800*1200mm

Supply Voltage:

380V

380V

380V

Power Required:

2.2kw

4.0kw

4.0kw

Machine Weight:

700kg

1000kg

1200kg

Machine Dimension:

L1000*W850*H1700mm

L1300*W1000*H2000mm

L1600*W1000*H2200mm
