Automatic hang tag threading machine with thick cord(LM-LY3-C)

Automatic hang tag threading machine with thick cord(LM-LY3-C)

This high speed automatic hang tag threader machine is professional for non elastic cord knotting with hang tag. It is cold cutting for non elastic cord which includes cotton cord, gold cord, silver cord, nylon cord etc. It hole punching,threading,knotting,counting all in 1 pass.

Product Details

It adopts PLC control. It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for producing hang tags and hand cards.



Technology Parameters:

Model:

LM-LY3-C

Speed:

4000-5800pcs/h

Cord diameter:

0.3-2.1mm

tag min. size:

20*35mm

tag max. size:

90*150mm

Cord  min. length:

140mm

Cord  max. length:

400mm

Tag hole diameter:

3mm, 4mm, 5mm( change the mold)

The machine dimension:

1200*1300*1500mm

Weight:

420kgs

Power:

380V/220V ,50/60HZ,750W

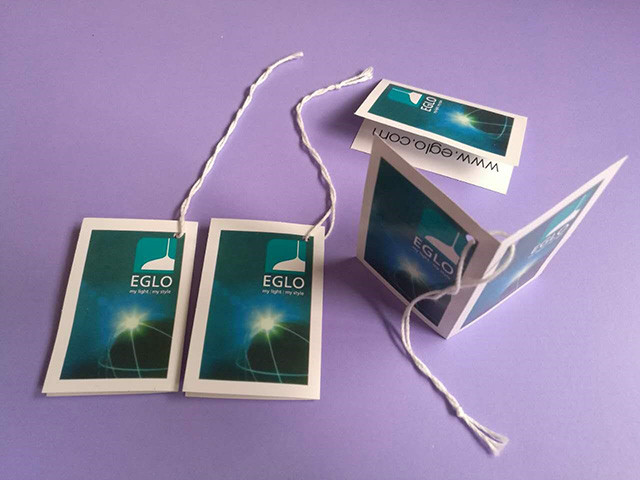

sample show:
