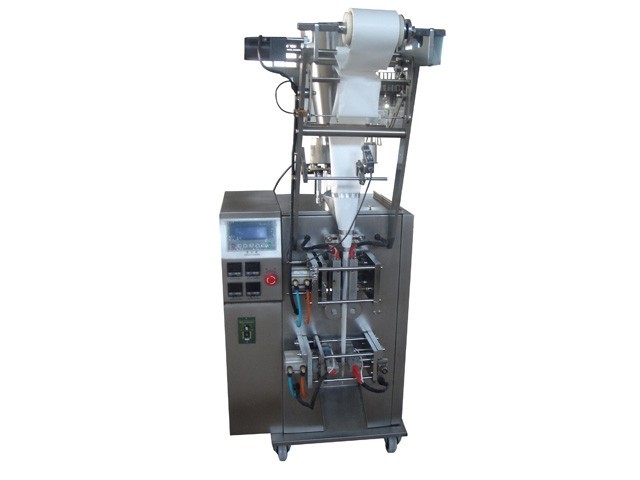

DXD-80K-4

DXD-80K-4

It is suitable for packing loose, non sticky granular material such as 3 in 1 coffee, instant drink, cold-drink powder, pellet, monosodium glutamate, white sugar, salt, soup stuff and oatmeal, peanut etc. Most commonly used in the pharmacy, food, dairy, and agriculture industries etc.

Product Details

The Machine adopts  MITSUBISHI PLC programmable controller and matches with English and Chinese display screens. And it's easy to operate, convenient in adjustment and super automatic.

The machine body is full stainless steel. Measured with volumetric cup system, it can reach the measuring country standard. It can be adjusted in the rated materials, and the functions position such as bag forming, measuring, filling, sealing, cutting, counting and batch printing.

Photoelectric tracking system and two way compensate function are adopted to ensure the automatic correcting of double face printing design on packing sahcet. It can setup the sachet length directly in PLC, and do step-less adjustment to the pouch length at the sachet length range.

Technical Parameters

Model:

DXD-80K-B

DXD-80K-3

DXD-80K-4

Sachet width:

17-80mm

40-80mm

40-80mm

Sachet length:

50-150mm (adjustable)

50-120mm (adjustable)

50-120mm (adjustable)

Sachet sealing type:

Pillow type

3 side seal

4 side seal

Packaging dose:

1-50g/sachet

1-50g/sachet

1-50g/sachet

Packaging film:

PET/AL/PE,  PET/PE, NY/AL/PE,  NY/PE etc complex film

PET/AL/PE,  PET/PE, NY/AL/PE,  NY/PE etc complex film

PET/AL/PE,  PET/PE, NY/AL/PE,  NY/PE etc complex film

Max film width:

160mm

160mm

160mm

Max film diameter:

300mm

300mm

300mm

Film core diameter :

70-76mm

70-76mm

70-76mm

Power:

220V, 50HZ , single phase , 1.1KW

220V, 50HZ , single phase , 1.1KW

220V, 50HZ , single phase , 1.1KW

N.W.:/G.W:

185/250Kgs

185/250Kgs

185/250Kgs

Machine Dimension:

L800*W700*H1550(mm)

L800*W700*H1550(mm)

L800*W700*H1550(mm)
