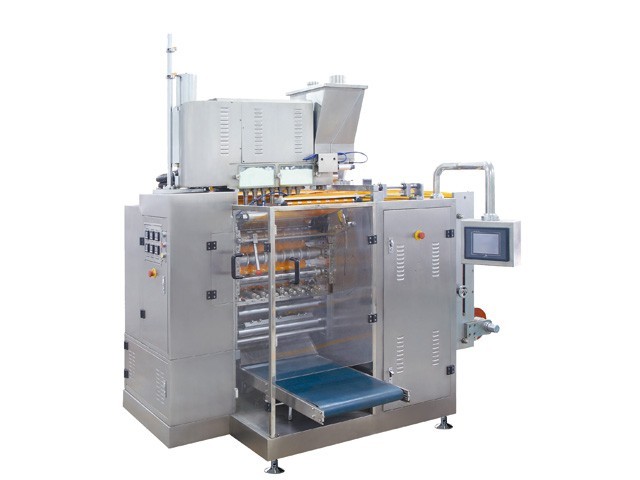

DXD-F900E

DXD-F900E

Suitable for packing loose, non stick powder material in the medicine, food, daily chemical and other industry, automatic packing into sachets with measuring requirement. Such as flour, coffee powder, starch, milk powder, all kinds of drugs, chemical powder and so on.

Product Details

Characteristic:

1. Advanced performance, high power, low noise, compact structure, operate steadily, easy to maintain, and has a long life span.

2. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC. It is precise in automatic in step positioning.

3. High degree of automation, machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting dotted line cutting, transverse cutting to outputting finished sachets.

4. High precision whole rolling type heat sealing rollers are adopted as sealing mould, four side sealing, multi-line sachet form. With high packing transverse sealing, filling, embossing, dotted line cutting and transverse cutting through man-machine interface.

5. Easy an fast to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the function as longitudinal sealing, transverse sealing, filling, embossing. Dotted line cutting, and transverse cutting through man-machine interface.

6. Accurate in measurement. Regarding to powder material, we adopt material level detection, rotary feeding mechanism, to ensure the material level keep in a certain height and evenly slew. Every line match with cylindrical leaves screw servo motor to feeding, measuring feeding dosage can be setup independently in man-machine interface and can be fine tuned, each line’s dosage can be adjusted easily and accurately.

7. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.

8. Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high control accuracy ( /-1 degree). suitable for most complex film packing film in home and abroad, such as PET/AL/PE, PET/PE, NY/AL/PE , NY/PE and so on.

9. Extra function set up , for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc. according to the material properties. It can be extra equipped with feeding mouth lifting mechanism, vibration etc, and can choose different kinds of alarm requirement.

Technical Parameters

Model:

DXD-F900E

Pouch length:

50-300mm

Pouch width

60-105mm

Speed:

60 times/min

Filling capacity:

1-80ml

Applicable film:

PET/AL/PE, PET/PE, NY/AL/PE, NY/PE

Max. film width:

900mm

Max. film diameter:

300mm

Film core diameter:

75mm

Electric source”

380V, 50HZ( do as customer’s request)

Total power:

12KW

Dimension:

2200*1700*2250mm

Machine Weight:

1500kgs

Wooden case size:

1650*1500*2200mm
