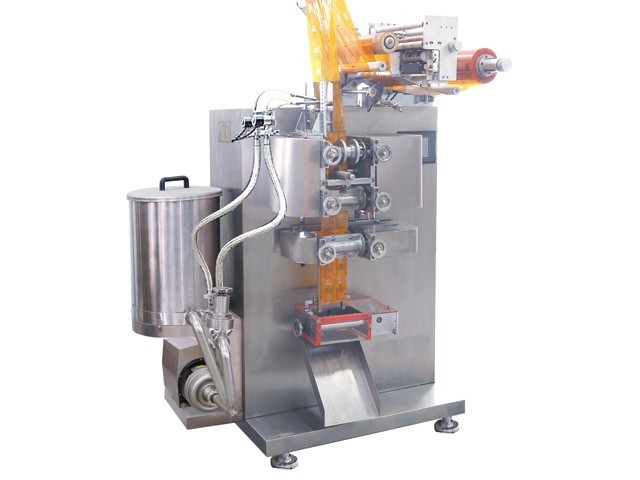

DXD-Y350E

DXD-Y350E

Suitable for packing liquid materials in the pharmacy food, daily and other industries. Juice, wine, whisky, water, milk, soft drink etc.

Product Details

Three-step rollers, four-side sealing. Film runs continuously. Fast and efficient as well as stable in function, low noise, firm airtight sealing, reliable quality and results.

An imported transducer is adopted to make adjusting easy, intelligent temperature contr5oller regulates sealing making it even more convenient.

Photoelectric tracking system is adopted to ensure correct printing and accurate counting.

An imported frequency changer is adopted for step less adjust speed, intelligent temp. Controller to adjust sealing temperature with reliable performance and convenient to adjust.

Stepping motor driver is adopted, pouch length can be setup directly at the touching screen, at the same time longitudinal sealing and transverse sealing be able to auto in-phase tracking. It saves more time and material compare to mechanical driver, and with bag pulling more smooth and even easier to adjust.

Piston pump or magnetic pump is adopted for automatic feeding and precise in measuring, ca fill material with high temperature, more suitable to high speed bag packing machine's using.

Applicable to a wide range of use. Cutting method can choose flat cutting or fracture line cutting, and can match with ink coding machine.

Technical Parameters

Model:

DXD-Y350E( Double lanes)

Pouch length:

50-250mm

Pouch width:

40-80mm


Max packing speed:

60-100pcs/min (depend by material and specification)

Packing dose:

1.5-50ml/pouch

Packing film:

PET/AL/PE PET/PE NY/AL/PE NY/PE

Max film width:

350mm

Max film diameter:

300mm

Film core diameter:

70-76mm

Electric source:

220V, 50Hz(do as customer's request)

Total power:

5.5KW

N. W.: /G. W:

550/650Kgs

Package size:

1800*1000W*2200H (mm)
