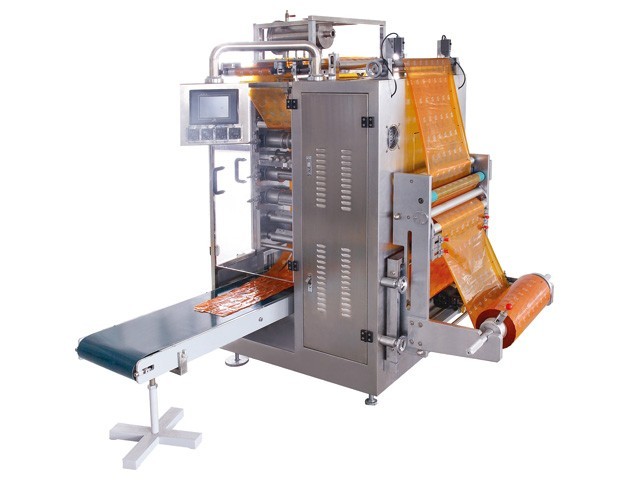

DXD-Y500E

DXD-Y500E

It is suitableto pack liquid materials in the fields of pharmacy industry, food industry, daily industry, and agricultural industry. Such as juice, wine, water,soy sauce, peanut oil, vinegar, salad oil and juice, shampoo, tomato ketchup, fruit jam etc.

Product Details

Description:

● Great energy, high strength, low noise, compact conformation, stable running, easy to maintain, and have long life.

Roller heat-sealing, four-side sealing, high speed and multi-bag packing, and with bags coming smoothly and fine, high packing efficiency.

● Magnetic drive pump or Hibar pump is adopted to measure the material. It is applicable to a wide using: suitable for all of complex film packing materials.

● Easy to adjust, precise in measurement, do step-less adjustment for the pouch length and width. It can regulate the functions as longitudinal sealing, transverse sealing, filling, notch cutting, longitudinal cutting, fracture line making, and transverse cutting through man-machine interface.

● Accurate in page correcting, automatic counting, photoelectric tracking system is adopted to ensure the automatic correcting the double face printing design on the packing bags, precise in measuring.

● It is reliable performance, convenient to operate and super automatic. A PLC is used for automatic controlling and frequency changer is for step-less speed adjusting.

Technical Parameters

Model:

DXD-Y500E

Pouch Length:

 50-300mm

Pouch Width:

 32-105mm

Max. Lane:

 6 lanes ( depend on customers' pouch width)

Max. Packaging Speed:

 100-240 pouchs/min (depend on material and specification)

Packaging Dose:

 1.5-50ml/pouch

Packaging Film:

 PET/AL/PE PET/PE NY/AL/PE NY/PE ect complex film

Max. Film Width:

 500mm

Max Film Diameter:

 300mm

Film Core Diameter :

 70-76mm

Electric source:

3 phase 4 wire , 380V,50Hz(do as customer’s request)

Total Power:

12KW

N.W.:/G.W:

1100/1300KGS

Wooden Package size:

1680L*1280W*1950H (mm)
