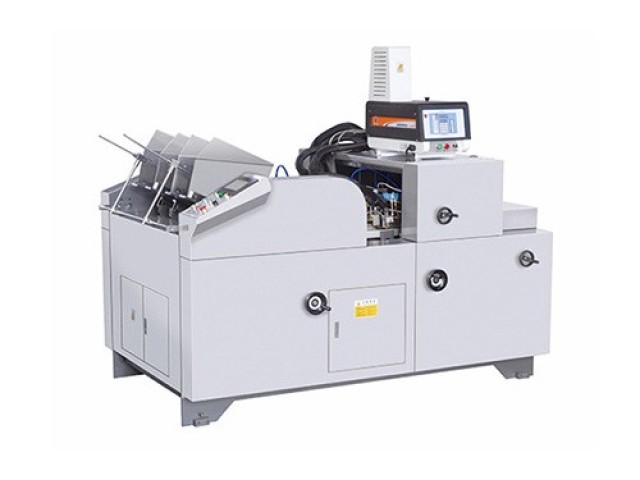

Full automatic tool box pasting forming machine LM - 300- XZH

Full automatic tool box pasting forming machine LM - 300- XZH

LM - 300- XZH box forming machine is developed by our factory adhesive carton packaging equipment. Mainly used for small adhesive carton packaging production and processing, widely used in handicrafts, electronics, electrical appliances and hardware, standard parts and cover the carton packaging industry.

Product Details

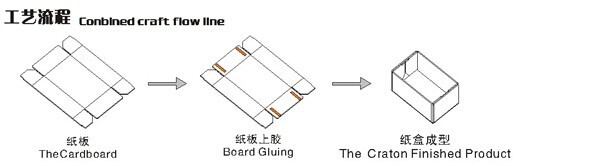

PLC programmable controller, photoelectric tracking system, touch screen man-machine interface, the host is equipped with frequency converter speed control, combined with the servo motor feeding mechanism, pump suction mouth to paper to institutions, hot melt adhesive glue system such as the perfect combination of each system, to complete the paper, glue, forming a complete. With the method of production both in one carton More cost savings to improve efficiency, is the preferred equipment for the carton packaging enterprises such as letter now.

Product synopsis:

Two carton production by one machine at the same time, can also be a only one carton production, cost savings to improve efficiency.

Host the linkage control frequency converter, can according to different specifications carton automatic speed regulation, stable electricity savings.

The pump suction mouth paper, paper smooth and reliable, reduce double leakage fa-sheng zhang zhang.

Use hot melt glue system, spray adhesive is accurate, stable and with less glue and joint formation.

Servo push board glue, reduce the error of the photoelectric sensor with cardboard generate, glue more accurately.

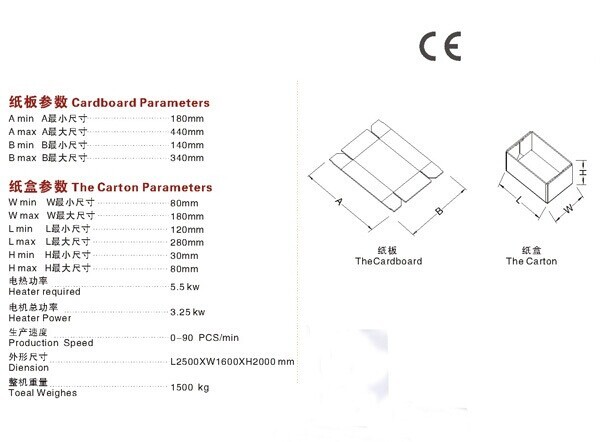

Technical Parameters

Model:

 LM-300-XZH

 A cardboard sheet min.size:

 180mm

 A cardboard sheet max. size:

 440mm

 B cardboard sheet min. size:

 140mm

  B cardboard sheet max. size:

 340mm

 The carton W min. size:

 80mm

 The carton W max. size:

 180mm

  The carton L min. size:

 120mm

  The carton L max. size:

 280mm

  The carton H min. size:

 30mm

  The carton H max. size:

 80mm

  Heater required:

 5.5KW

 Heater Power:

 3.25KW

 Max. pseed:

 90pcs per min

 Dimension:

 L2500*W1600*H200mm
