ML-1600,2500

ML-1600,2500

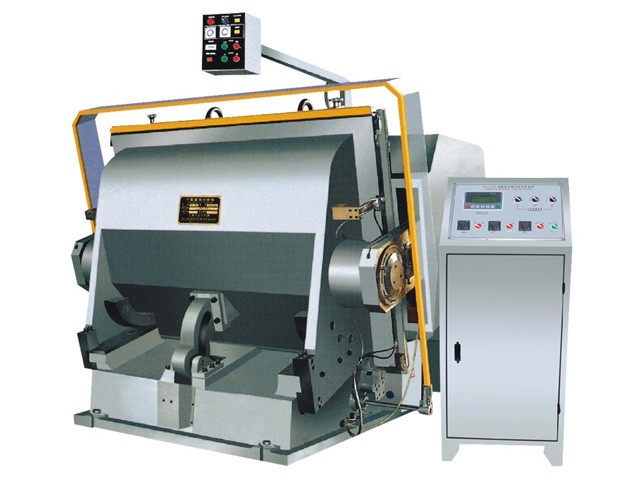

Creasing and Die-cutting machine is professional equipment, which creases and die-cuts ordinary cardboard, corrugated board, plastic sheet and leather product in printing, packaging and plastic industries.
It has characteristic of compact structure, fine workmanship, large cutting pressure, high precision, easy and reliable operation, etc.

Product Details

Main Structure Fractures:
1. High strength cast frame made by top quality materials.
2. Smooth running, big pressure and low noise are obviously remarked as adopts 4-step helical gear mechanism.
3. Operation altitude is rational arranged, movable platen opens to its optimum.
4. With single, continuous, and delay functions, and the delaying range is adjustable.
5. Reliable safety protection system.
6. Centralized lubricating system.

Specification:

Model:

 ML-1600

 ML-1800

 ML-2000

 ML-2500

Inner sheet size:

 1600*1250mm

 1800*1300mm

 2000*1400mm

 2500*1500mm

Speed:

 13 /-2 strokes/min

 13 /-2 strokes/min

  12 /-2 strokes/min

 12 /-2 strokes/min

Max rule length:

 <50m

 <62m

 3000*2500*2000mm

 3500*2800*2000mm

Motor power:

 11kw

 11kw

 15kw

 15kw

Machine weight:

 11500kgs

 14000kgs

 15500kgs

 18000kgs

Overall dimension (L*W*H):

  2500*2200*2000mm

 2800*2340*2000mm

 3000*2500*2000mm

 3500*2800*2000mm
