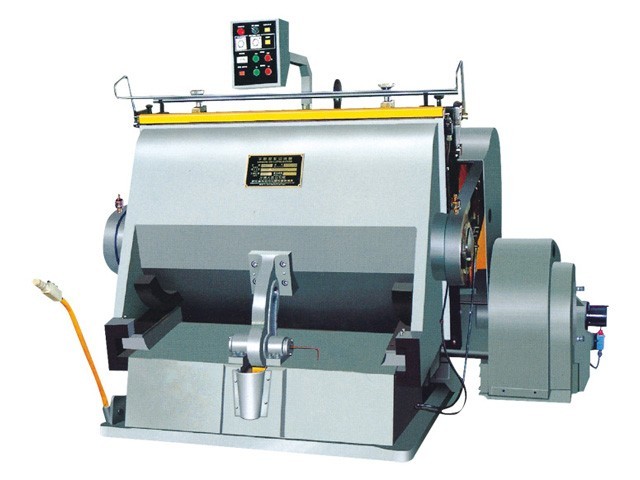

ML13001500 die cutting machine

ML13001500 die cutting machine

Creasing and Die-cutting machine is professional equipment, which creases and die-cuts ordinary cardboard, corrugated board, plastic sheet and leather product in printing, packaging and plastic industries.
It has characteristic of compact structure, fine workmanship, large cutting pressure, high precision, easy and reliable operation, etc.

Product Details

Main Structure Fractures:
1. High strength cast frame made by top quality materials.
2. Smooth running, big pressure and low noise are obviously remarked as adopts 4-step helical gear mechanism.
3. Operation altitude is rational arranged, movable platen opens to its optimum.
4. With single, continuous, and delay functions, and the delaying range is adjustable.
5. Reliable safety protection system.
6. Centralized lubricating system.

The main specification:

Model:

 ML-1300

 ML-1400

 ML-1500

 ML-1500

Inner sheet size:

 1300*920mm

 1400*100mm

 1500*1080mm

 1500*1150mm

Speed:

 15 /-2strokes/min

 15 /-2strokes/min

 14 /-2strokes/min

 14 /-2strokes/min

Max rule length:

 <35m

 <45m

 <47m

 <48m

Motor power:

 5.5kw

 7.5kw

 7.5kw

 7.5kw

Machine weight:

 5600kgs

 6200kgs

 7000kgs

 7300kgs

Overal dimension:

 1960*2160*1600mm

 2050*2450*1650mm

 2500*2200*1750mm

 2500*2200*1850mm
