ML-710,930

ML-710,930

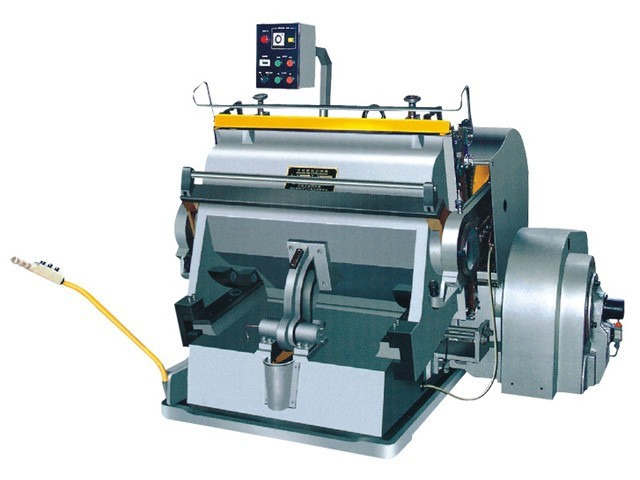

Creasing &die-cutting machine
The Creasing and Die-cutting machine is professional equipment, which creases and die-cuts ordinary cardboard, corrugated board, plastic sheet and leather product in printing, packaging and plastic industries.
It has characteristic of compact structure, fine workmanship, large cutting pressure, high precision, easy and reliable operation, etc.

Product Details

The Main Structure Fractures:

1. High strength cast frame made by top quality materials.

2. Smooth running, big pressure and low noise are obviously remarked as adopts 4-step helical gear mechanisms.

3. Operation altitude is rational arranged, movable platen opens to its optimum.

4. With single, continuous, and delay functions, and the delaying range is adjustable.

5. Reliable safety protection system.

6. Centralized lubricating system.

The main specification:

Model:

 ML-710

 ML-930

Inner sheet size

 710*500mm

 930*670mm

Speed:

 23 /-3 strokes/min

  25 strocks/min

Max rule length:

 <15m

 <25m

 Motor power:

 2.2KW

 4KW

 Machine weight:

 2000kgs

 3000kgs

 Overall dimension

 1300*1300*1300mm

 1720*1530*1600mm

Online Inquiry

Related Products

ML-710,930

ML-710,930

Creasing &die-cutting machine
The Creasing and Die-cutting machine is professional equipment, which creases and die-cuts ordinary cardboard, corrugated board, plastic sheet and leather product in printing, packaging and plastic industries.
It has characteristic of compact structure, fine workmanship, large cutting pressure, high precision, easy and reliable operation, etc.

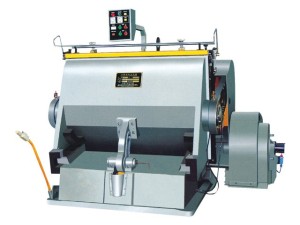

ML13001500 die cutting machine

ML13001500 die cutting machine

Creasing and Die-cutting machine is professional equipment, which creases and die-cuts ordinary cardboard, corrugated board, plastic sheet and leather product in printing, packaging and plastic industries.
It has characteristic of compact structure, fine workmanship, large cutting pressure, high precision, easy and reliable operation, etc.

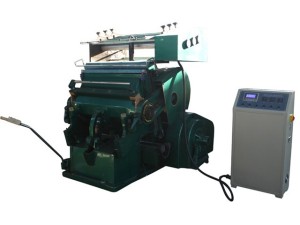

TYMB750-1100
